How to Configure Static IP Address on Fedora

A static IP address is an Internet Protocol (IP) address that remains the same even when your computer is connected to Wi-Fi. You may need a static IP address for several reasons, such as if you have multiple devices on your home network and you want to make sure they can use their respective IP addresses to communicate. If you’re using your computer as a server, it may also be necessary so that other devices can find it at all times. Configuring a static IP address on Fedora is easy and you will learn how in this article.

We will discuss 2 methods for configuring static IP addresses on Fedora using GUI and terminal.

Method 1: Configuring Static IPv4 Address on Fedora with GUI

The Fedora Desktop editions provide a graphical user interface for managing the system configuration. You can quickly configure the network interfaces using GUI. Follow the below steps to configure a static IP address on Fedora Desktop systems.

Open Settings:

Log in to the Fedora desktop system with a privileged account.
Search and open system Settings on your system

Open Network Settings:

Select the Network tab in the left sidebar
You will see the Wired section, Click the gear icon as shown below screenshot

Configure Static IP Address on Fedora (GUI)

IPv4 Settings:

You will see the Details tab, here you can find the current system IP details
Go to the IPv4 section

Set a new IP address:

In the IPv4 Method select “ Manual ” option.
In the Addresses section, set the new IP address, Netmask, and the Gateway.
In the DNS section, set the IP address of your DNS server. In the below screenshot, I have used 8.8.8.8 (Google public DNS server) and 192.168.1.2 (local DNS server)
Click the Apply button at top-right corner

Disable and Enable Networking:

Now, disable the networking and enable it again to apply the changes immediately.

Method 2: Configuring Static IPv4 Address on Fedora with CLI

The fedora provides nmcli command-line tool for managing NetworkManager. In this method, we will help you to configure the static IP address on Fedora system via command line.

Change Static IP Address on Fedora via CLI

Connection Name: ‘Wired connection 1’
Interface Name: eth0
IP Address & Netmask: 192.168.1.210/24
Gateway Address: 192.168.1.2
If required, you can also update the DNS server settings. sudo nmcli con mod 'Wired connection 1' ipv4.dns 8.8.8.8,8.8.4.4
Down and Up the network connection. sudo nmcli con down 'Wired connection 1' && sudo nmcli con up 'Wired connection 1'

How to Check IP Address on Fedora

Press CTRL + ALT + T to launch the terminal on your Fedora system. Now type the following IP command to view all IP addresses configured on your system.

How to check IP Address via Command Line

This tutorial describes 2 methods for configuring static IP addresses on the Fedora system using a graphical user interface and a command line interface.

TCP/IP vs. OSI Model: A Comparative Study

What is Bootstrap Protocol (BOOTP)?

How to change the default screen resolution in ubuntu: a step-by-step guide, leave a reply cancel reply.

Save my name, email, and website in this browser for the next time I comment.

Type above and press Enter to search. Press Esc to cancel.

How to Configure Static IP Address on Fedora Linux

Hi techies, as we know Fedora is one of popular open source Linux based operating system. Fedora Linux can be used as workstation, Server, and CoreOS.

In this guide, we learn how to manually configure static ip address on Fedora Linux (Fedora 36 Workstation). A static IP address is an IP address that stays the same over time and remain persistent across the reboot. There are two different ways to configure static IP.

nmcli utility (Command Line)
Graphically

Configure Static IP address on Fedora 36 Using nmcli

The nmcli is a command line utility and used to configure a static IP address on Fedora Linux. To use this command, you must first open a terminal window (Ctrl+Alt+T). Then, you will need to type in the following commands:

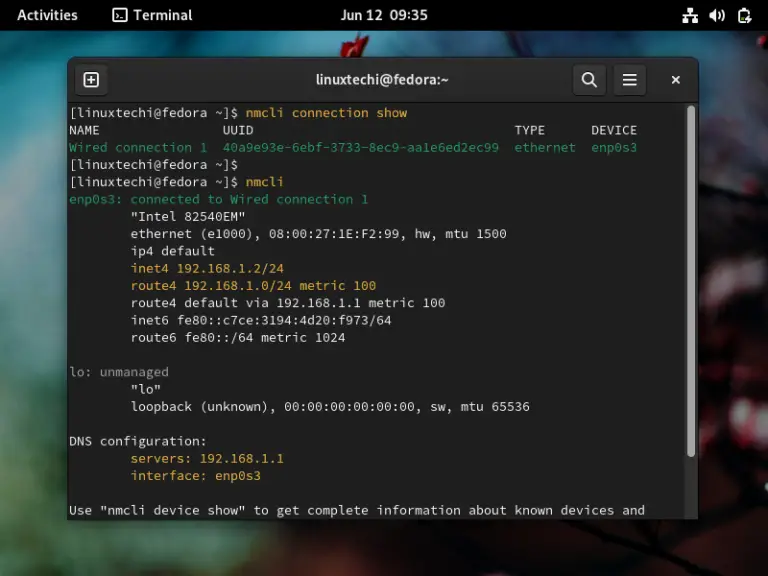

This will show you a list of all the connections that are currently configured on your system.

In my case, my Fedora system is connected to modem and got the IP from DHCP server. Now to make the IP address static and persistent, run following nmcli commands.

Following commands will modify the existing connection name ‘ Wired Connection 1 ’

Run beneath command to add static ip address along with the gateway ip.

To add DNS IP address, run

To make above changes into the effect, disable and enable the connection,

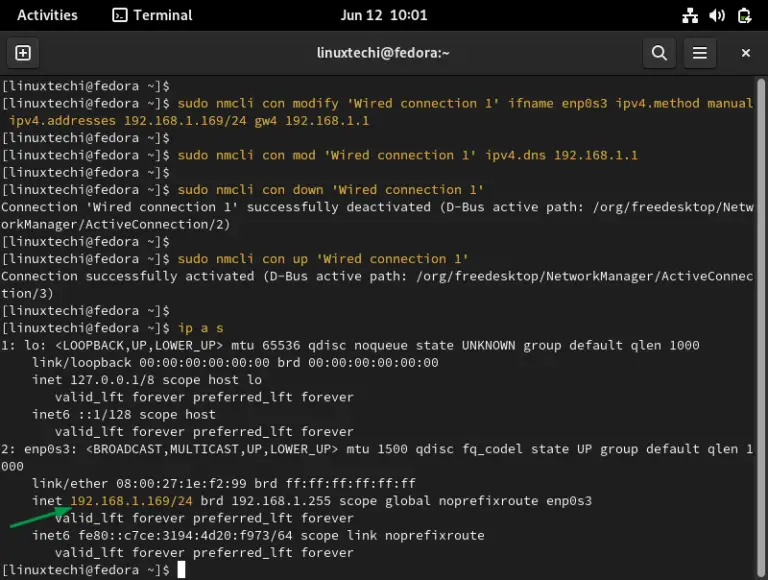

Verify the ip address using ip command ,

Output of above commands would like below,

In case, you don’t want to use the existing connection and want to create new connection for configuring the static IP address, run following commands one after the another,

Assign Static IP Address on Fedora 36 via Graphically

Note: For this method to work, make sure desktop environment is installed on your fedora system.

Click on gearbox icon ,

In following window, Choose IPv4 ,

Choose ‘ Manual ’ to assign static ip address, gateway and DNS IP.

Specify details as below:

IP address: 192.168.1.189
Netmask: 255.255.255.0
Gateway IP: 192.168.1.1
DNS IP: 192.168.1.1

Note: Replace the IP details as per your environment.

Click on Apply .

Now disable and enable the interface to make above changes into the effect.

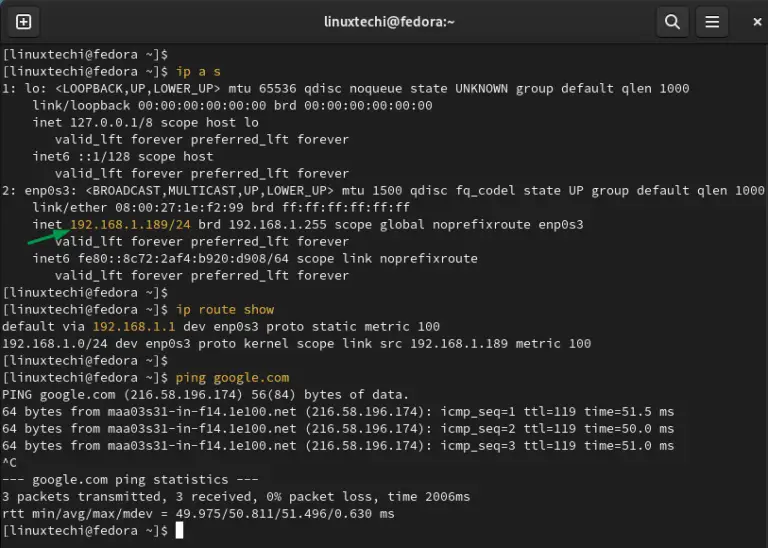

Close the window and open the terminal and run ip command to verify the ip address.

Prefect, above commands output confirm that static IP address has been configured successfully on our Fedora Linux.

That’s all from this guide. In case you have found it informative, so please do share it among your technical friends.
